How to apply firmware update on 60 mini turbo

I recently got turbo’s new firmware file which is not provided in OTA server (V1.5.0.9_250123).

So I tried to install it through QFIL app, following this guide. (https://www.alldocube.com/en/firmware/alldocube-xneot1009-firmware-download/) (It is snapdragon powered tablet by alldocube in past)

But it was impossible to enter edl mode by hardware key combination on X Neo guide.



So, can anyone teach me how to enter edl mode after powering off? I tried entering with adb method and it recognize the tablet in edl mode but cannot be installed.

Had anyone tested yet?

And is there no way to unlock this device?

Install driver for Qualcomm 9008 mode

Manually enter the 9008 port mode (press the power，Volume up and down keys at the same time when the power is off, until a black LOGO flashes on screen )

Use Qualcomm QPST tool to load the rawprogram0.xml and prog_firehose_ddr.elf files, and then flash the firmware.

What is a black LOGO screen?
I tried 3 button hold while usb cable plugged in and unplugged but it just keep reboots showing a alldocube logo about a second.

And is there any plans to update to android 15?

Did I done anything wrong?

I entered edl by adb typing adb reboot edl
original firmware version is 1.5.0.7

installed QPST, Qualcomm usb driver and pc recognize that tablet is in QDLoader 9008.

changed the setting into ufs

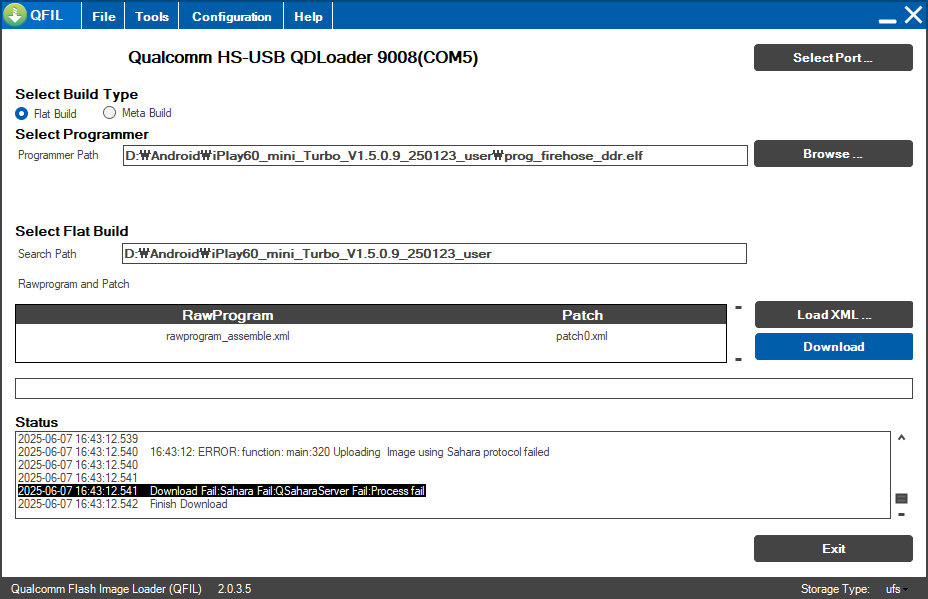

But keeps failing while installing new firmware.



here’s log of the installation

2025-06-07 17:00:57.288 ***** Working Folder:C:\Users\a\AppData\Roaming\Qualcomm\QFIL\BHI
2025-06-07 17:00:57.292 Validating Application Configuration
2025-06-07 17:00:57.295 Load APP Configuration
2025-06-07 17:00:57.304 COM:-1
2025-06-07 17:00:57.304 PBLDOWNLOADPROTOCOL:0
2025-06-07 17:00:57.304 PROGRAMMER:True
2025-06-07 17:00:57.304 PROGRAMMER:D:\iPlay60_mini_Turbo_V1.5.0.9_250123_user\prog_firehose_ddr.elf
2025-06-07 17:00:57.304 RESETSAHARASTATEMACHINE:False
2025-06-07 17:00:57.304 SAHARAREADSERIALNO:False
2025-06-07 17:00:57.304 SEARCHPATH:D:\iPlay60_mini_Turbo_V1.5.0.9_250123_user
2025-06-07 17:00:57.304 RAWPROGRAM:
2025-06-07 17:00:57.304 rawprogram_assemble.xml
2025-06-07 17:00:57.304 PATCH:
2025-06-07 17:00:57.304 patch0.xml
2025-06-07 17:00:57.304 ACKRAWDATAEVERYNUMPACKETS:False
2025-06-07 17:00:57.304 ACKRAWDATAEVERYNUMPACKETS:100
2025-06-07 17:00:57.304 MAXPAYLOADSIZETOTARGETINBYTES:False
2025-06-07 17:00:57.304 MAXPAYLOADSIZETOTARGETINBYTES:49152
2025-06-07 17:00:57.304 ACTIVEBOOTPARTITION:False
2025-06-07 17:00:57.304 ACTIVEBOOTPARTITION:0
2025-06-07 17:00:57.304 PHYPARTITIONS:False
2025-06-07 17:00:57.304 PHYPARTITIONS:0,1,2,4,5
2025-06-07 17:00:57.304 DEVICETYPE:ufs
2025-06-07 17:00:57.304 PLATFORM:8×26
2025-06-07 17:00:57.304 VALIDATIONMODE:0
2025-06-07 17:00:57.304 RESETAFTERDOWNLOAD:False
2025-06-07 17:00:57.304 SWITCHTOFIREHOSETIMEOUT:30
2025-06-07 17:00:57.304 RESETTIMEOUT:200
2025-06-07 17:00:57.304 RESETDELAYTIME:2
2025-06-07 17:00:57.304 METABUILD:
2025-06-07 17:00:57.304 METABUILD:
2025-06-07 17:00:57.304 FLATBUILDPATH:C:\
2025-06-07 17:00:57.304 FLATBUILDFORCEOVERRIDE:True
2025-06-07 17:00:57.304 QCNPATH:C:\Temp\00000000.qcn
2025-06-07 17:00:57.304 QCNAUTOBACKUPRESTORE:False
2025-06-07 17:00:57.304 SPCCODE:000000
2025-06-07 17:00:57.304 ENABLEMULTISIM:False
2025-06-07 17:00:57.304 AUTOPRESERVEPARTITIONS:False
2025-06-07 17:00:57.304 PARTITIONPRESERVEMODE:0
2025-06-07 17:00:57.304 PRESERVEDPARTITIONS:0
2025-06-07 17:00:57.304 PRESERVEDPARTITIONS:
2025-06-07 17:00:57.304 ERASEALL:False
2025-06-07 17:00:57.304 Load ARG Configuration
2025-06-07 17:00:57.327 Validating Download Configuration
2025-06-07 17:00:57.327 Image Search Path: D:\iPlay60_mini_Turbo_V1.5.0.9_250123_user
2025-06-07 17:00:57.328 RAWPROGRAM file path: D:\iPlay60_mini_Turbo_V1.5.0.9_250123_user\rawprogram_assemble.xml
2025-06-07 17:00:57.328 PATCH file path:D:\iPlay60_mini_Turbo_V1.5.0.9_250123_user\patch0.xml
2025-06-07 17:00:57.329 Programmer Path:D:\iPlay60_mini_Turbo_V1.5.0.9_250123_user\prog_firehose_ddr.elf
2025-06-07 17:00:57.715 Process Index:0
2025-06-07 17:00:57.725 Qualcomm Flash Image Loader (QFIL) 2.0.3.5
2025-06-07 17:01:06.050 Start Download
2025-06-07 17:01:06.052 Program Path:D:\iPlay60_mini_Turbo_V1.5.0.9_250123_user\prog_firehose_ddr.elf
2025-06-07 17:01:06.054 ***** Working Folder:C:\Users\a\AppData\Roaming\Qualcomm\QFIL\COMPORT_5
2025-06-07 17:02:36.079 Binary build date: Jun 25 2019 @ 03:16:15
2025-06-07 17:02:36.079 QSAHARASERVER CALLED LIKE THIS: ‘D:\Android\Qualcomm_Flash_Image_Loader_v2.0.3.5\QSaharaServer.ex’Current working dir: C:\Users\a\AppData\Roaming\Qualcomm\QFIL\COMPORT_5
2025-06-07 17:02:36.082 Sahara mappings:
2025-06-07 17:02:36.082 2: amss.mbn
2025-06-07 17:02:36.083 6: apps.mbn
2025-06-07 17:02:36.083 8: dsp1.mbn
2025-06-07 17:02:36.084 10: dbl.mbn
2025-06-07 17:02:36.084 11: osbl.mbn
2025-06-07 17:02:36.084 12: dsp2.mbn
2025-06-07 17:02:36.085 16: efs1.mbn
2025-06-07 17:02:36.085 17: efs2.mbn
2025-06-07 17:02:36.086 20: efs3.mbn
2025-06-07 17:02:36.086 21: sbl1.mbn
2025-06-07 17:02:36.087 22: sbl2.mbn
2025-06-07 17:02:36.087 23: rpm.mbn
2025-06-07 17:02:36.087 25: tz.mbn
2025-06-07 17:02:36.088 28: dsp3.mbn
2025-06-07 17:02:36.088 29: acdb.mbn
2025-06-07 17:02:36.089 30: wdt.mbn
2025-06-07 17:02:36.089 31: mba.mbn
2025-06-07 17:02:36.090 13: D:\iPlay60_mini_Turbo_V1.5.0.9_250123_user\prog_firehose_ddr.elf
2025-06-07 17:02:36.090
2025-06-07 17:02:36.091 17:02:36: ERROR: function: sahara_rx_data:276 Unable to read packet header. Only read 0 bytes.
2025-06-07 17:02:36.091
2025-06-07 17:02:36.092 17:02:36: ERROR: function: sahara_main:982 Sahara protocol error
2025-06-07 17:02:36.092
2025-06-07 17:02:36.092 17:02:36: ERROR: function: main:320 Uploading Image using Sahara protocol failed
2025-06-07 17:02:36.093
2025-06-07 17:02:36.094
2025-06-07 17:02:36.094 Download Fail:Sahara Fail:QSaharaServer Fail:Process fail
2025-06-07 17:02:36.095 Finish Download
